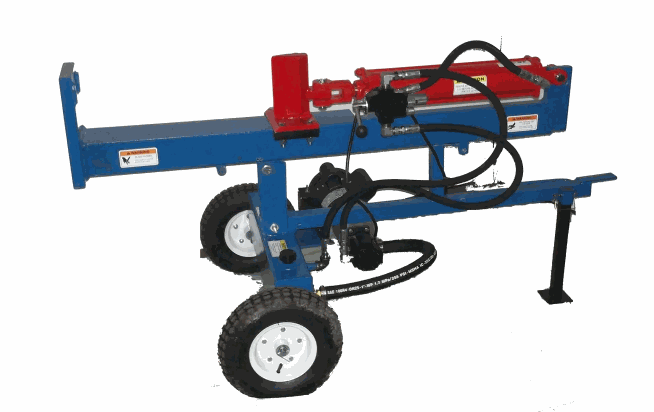

16 Ton horizontal/vertical with 1.5HP Electric Motor
General Specifications:
- Ram Force: 16 Tons
- Stroke: 18”
- Cycle Time: 12 Seconds
- Maximum Log Length: 20”
- Maximum Log Diameter: 40”
- Splitting Wedge: Single Wedge, Slip-on 4-Way Wedge
- Wedge Type: Hardened Steel
- Wedge Height: 8”
- Beam Type: Tube Steel
- Beam Working Height: 24”
- Tongue Stand: Yes
- Trailer Hitch Coupler: Garden Tractor Pin Hitch
- Tires/Wheels: 13” Pneumatic
- Max Tow Speed: 35 MPH
- Product Weight: 350 lbs
- Assembled Dimensions (L x W x H): 60” x 32” x 40”
- Warranty: 1 Year Parts
Engine Specifications:
- Engine Type: Electric
- Displacement: 1800 RPM
- Engine Power: 1.5 HP
- Starting System: Electric Start
- Warranty: 3 Year Limited Warranty
Hydraulic System:
- Pump: 11 GPM, Two-Stage
- Valve: 2 Spool Valve
- Hoses: Wire Hydraulic Hoses
- Hydraulic Fluid Tank Capacity: 8 Gallons
- Hydraulic Fluid Type: 32 Weight/Automatic Transmission Fluid
- Cylinder Dimensions: Welded 3.5" x 18" with 1.25" Rod
